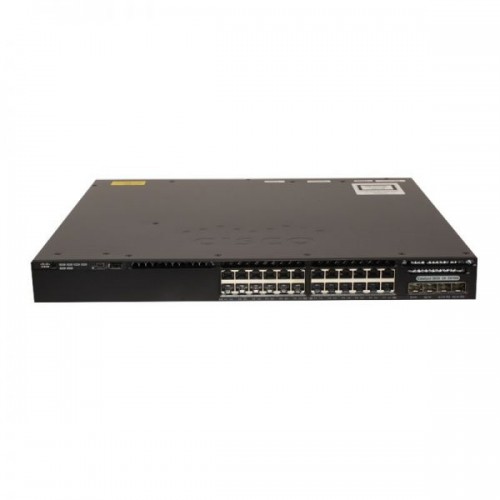

The Cisco Catalyst 3650 Series Switch, with Cisco StackWise-160 Technology, can stack 9 switches and support up to 160 Gpbs stack bandwidth. The WS-C3650-24TD-S integrates with 24 Ethernet ports and 2 x 10G SFP+ or 4 x 1G SFP uplink ports in IP base feature set.
Quick Specs
Table 1 shows the quick spec.
|
Product Code
|
WS-C3650-24TD-S
|
|
Enclosure Type
|
Rack-mountable - 1U
|
|
Feature Set
|
IP base
|
|
Uplink Interfaces
|
2 x 10G SFP+ or 4 x 1G SFP
|
|
Ports
|
24 x 10/100/1000 Ethernet ports
|
|
Maximum stacking number
|
9
|
|
Stack bandwidth
|
160 Gpbs
|
|
Forwarding Performance
|
68.45Mpps
|
|
Switching Capacity
|
88 Gbps
|
|
RAM
|
4 GB
|
|
Flash Memory
|
2 GB
|
|
Dimensions
|
44.5 cm x 44.5 cm x 4.4 cm
|
|
Package Weight
|
17.49 Kg
|
StackWise-160
The Cisco Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology which allows stacking up to 9 switches. StackWise-160 creates a highly resilient single unified system of up to 9 switches, providing simplified management with a single IP address. For stacking purpose, stack module is required and IP base feature set can only stack with other 3650 series in IP feature set. IP base switch can only stack with other 3650 series in IP base, in order to stack with LAN base, IP base has to configure in LAN base mode (Stack modules purchase separately).
The Modules, Licenses and Accessories
Table 2 shows some recommended modules,licenses and accessories of this switch.
Compare to Similar Items
Table 3 shows the comparison between WS-C3650-24TD-S and WS-C3650-24TD-L.
|
Models
|
WS-C3650-24TD-S
|
WS-C3650-24TD-L
|
|
Feature Set
|
IP Base
|
LAN Base
|
|
Uplink Interfaces
|
2 x 10G SFP+ OR 4 x 1G SFP uplinks
|
2 x 10G SFP+ OR 4 x 1G SFP uplinks
|
|
Ports
|
24 x 10/100/1000 Ethernet ports
|
24 x 10/100/1000 Ethernet ports
|
