Cisco Catalyst 3560CX Series compact enterprise class layer 3 switch WS-C3560CX-12TC-S offers 12 Gigabit Ethernet ports, 2 Gigabit Ethernet RJ-45 uplinks, 2 SFP uplinks.
Quick Specs

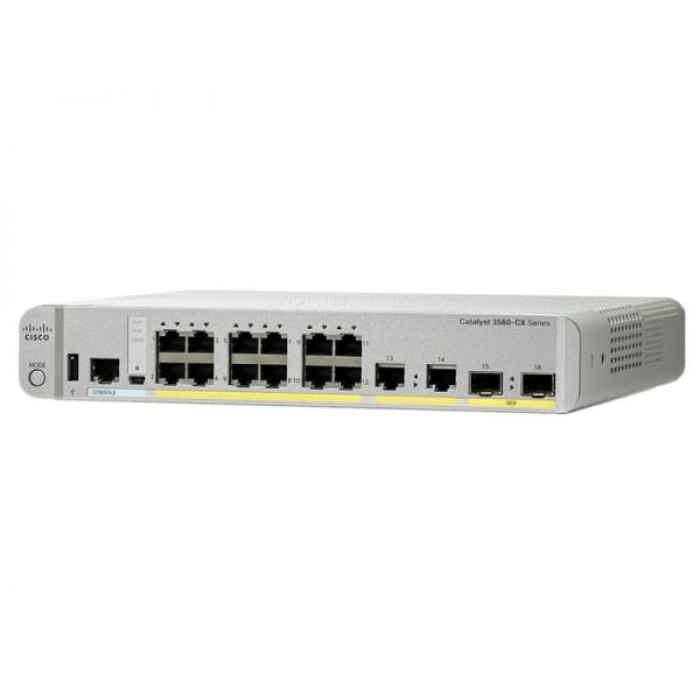

Figure 1 shows the appearance of WS-C3560CX-12TC-S.
Table 1 shows the Quick Specs.
|
Product Code
|
WS-C3560CX-12TC-S
|
|
Feature Set
|
IP Base
|
|
Uplink Interfaces
|
2 x 1G copper plus 2 x 1G SFP
|
|
Ports
|
12 x 10/100/1000 Gigabit Ethernet
|
|
Forwarding Bandwidth
|
16 Gbps
|
|
Switching Bandwidth (full-duplex capacity)
|
32 Gbps
|
|
RAM
|
512 MB
|
|
Flash Memory
|
128 MB
|
|
Dimensions
|
4.44 x 26.9 x 21.3 cm
|
|
Package Weight
|
4.65 Kg
|
Product Details
Figure 2 shows the front panel of WS-C3560CX-12TC-S.
Note:
|
①
|
Mode button
|
⑤
|
SFP module slots
|
|
②
|
USB mini-Type B (console) port
|
⑥
|
Switch LEDs
|
|
③
|
12 x 10/100/1000 ports
|
⑦
|
RJ-45 Console Port
|
|
④
|
2 x 1G copper
|
⑧
|
USB Type A port
|
·Switch LEDs include SYST, STAT, SPEED, and Console LED.
Table 2 shows the three LEDs descriptions.
|
LED
|
Color/Port Mode
|
Description
|
|
SYST
(System LED)
|
Off
|
System is not powered on.
|
|
Green
|
System is operating normally.
|
|
Amber
|
System is receiving power but is not operating properly.
|
|
STAT
|
Port status
|
The port status. This is the default mode.
|
|
SPEED
|
Port speed
|
The port operating speed: 10, 100, or 1000 Mb/s.
|
The console LEDs show which console port is in use.
If you connect a cable to a console port, the switch automatically uses that port for console communication. If you connect two console cables, the USB-mini console port has priority.
Table 3 shows the Console LED description.
|
LED
|
Color
|
Description
|
|
RJ-45 console port
|
Green
|
RJ-45 console port is active.
USB-mini console port LED is not active.
|
|
Off
|
Port is not active.
USB-mini console port is active.
|
|
USB-mini console port
|
Green
|
USB-mini console port is active.
RJ-45 console port LED is not active.
|
|
Off
|
Port is not active.
RJ-45 console port is active.
|
The Accessories
Table 4 shows some recommended cables.
|
Models
|
Descriptions
|
|
CAB-CONSOLE-USB
|
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
|
|
CAB-CONSOLE-RJ45
|
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
|
Compare to similar item
|
Models
|
WS-C3560CX-12PC-S
|
WS-C3560CX-12TC-S
|
|
Uplinks
|
2 x 1G copper plus 2 x 1G SFP+
|
2 x 1G copper plus 2 x 10G SFP+
|
|
Ports
|
12 x 10/100/1000 Gigabit Ethernet
|
12 x 10/100/1000 Gigabit Ethernet
|
|
Feature set
|
IP Base
|
IP Base
|
|
PoE
Output Ports
|
12 PoE+
|
None
|
|
Available POE Power
|
240W
|
None
|
