Cisco® Catalyst® 2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). They operate on Cisco IOS® Software and support simple device management as well as network management. The Cisco Catalyst 2960-X and 2960-XR Series provide easy device onboarding, configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.
Quick Specs
Product Code
|
WS-C2960X-48FPD-L
|
Enclosure Type
|
Rack-mountable - 1U
|
Feature Set
|
LAN Base
|
Uplink Interfaces
|
2 x 10G SFP+
|
Ports
|
48 x 10/100/1000 Ethernet Gigabit ports
|
Available PoE Power
|
740W
|
Maximum stacking number
|
8
|
Stack bandwidth
|
80G
|
Forwarding Performance
|
107.1Mpps
|
Switching Bandwidth
|
216Gbps
|
RAM
|
512 MB
|
Flash Memory
|
128 MB
|
Dimensions
|
44.5 cm x 36.8 cm x 4.5 cm
|
Package Weight
|
10.65 Kg
|

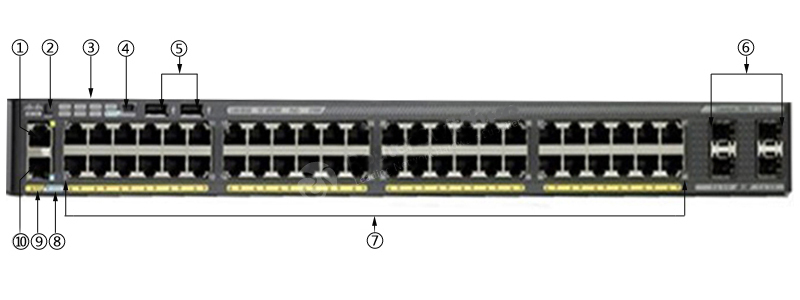

Note:
- Ethernet management port
- Mode button
- Switch LEDs
- USB mini-Type B (console) port
- USB Type A ports
- SFP+ module ports
- 48 x 10/100/1000 ports
- CONSOLE LED
- MGMT LED
- RJ-45 console port
·The Switch LEDs include SYST, STAT, SPEED, RPS, MAST, POE and STACK LEDs.
·Power over Ethernet Plus(PoE+) supports up to 740W of PoE budget for 24 ports with 30W per port or 48 ports with 15.4W per port.

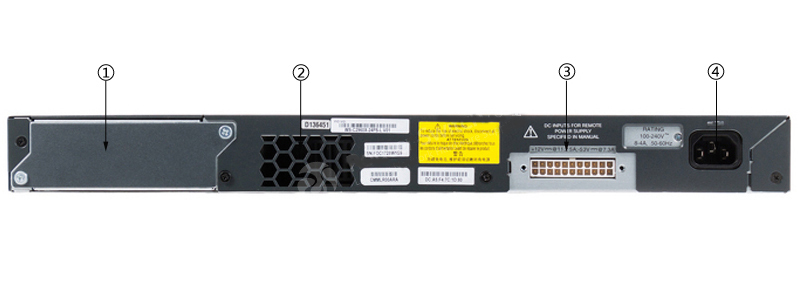

Note:
- FlexStack-Plus module slot and cover
- Fan Exhaust
- RPS Connector
- AC power connector
This C2960X switch delivers stackable capacity that supports up to 8 switches stacking with same 2960-X LAN base series. It also can stack up to 4 switches stacking when mixed with 2960-S LAN base series switches.
