Cudy AX3000A wall/ceiling-mounted WiFi 6 AP, featuring large RAM and shielded 2.5G ports Access Point AP3000 1.0
Cudy AX3000A wall/ceiling-mounted WiFi 6 AP, featuring large RAM and shielded 2.5G ports Access Point AP3000 1.0
AED 297
Cudy AX3000A wall/ceiling-mounted WiFi 6 AP, featuring large RAM and shielded 2.5G ports Access Point AP3000 1.0
Cudy
AED 297 inclusive of VAT

Cudy AX3000A wall/ceiling-mounted WiFi 6 AP, featuring large RAM and shielded 2.5G ports Access Point AP3000 1.0

  • Model:  AX3000A
  • SKU:                   205116
  • Condition:        New
  • Availability:      In Stock
About this Item
  • Brand: Cudy
  • 1.3 GHz Dual-Core CPU
  • 512 MB RAM
  • 4-Stream Dual-Band Wi-Fi 6
  • 2402 Mbps + 574 Mbps Wi-Fi
  • 1× Shielded 2.5GbE PoE IN
  • 802.3at, Passive PoE, DC
  • Watchdog, Schedule Reboot
  • 300 Connected Devices
  • Covers 130 m² (1,400 ft²)
AED 297 inclusive of VAT
Pay 4 interest-free payments of AED 74.25 , no interest/fees. Learn more
  • 1 year hassle free warranty claims
  • Delivery time is next working day, You can connect to support team to get exact delivery time.
Description - Cudy AX3000A wall/ceiling-mounted WiFi 6 AP, featuring large RAM and shielded 2.5G ports Access Point AP3000 1.0

Specification

Model Version AP3000 1.0
CPU
CPU CPU Details 1.3 GHz Dual-Core CPU
Memory/Storage
Memory/Storage Flash/ROM 256 MB (2 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR4
Wireless
Wireless 5 GHz Wi-Fi Speed 2402Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 5× Internal
5 GHz Antenna Gain Max 5.6 dBi
2.4 GHz Antenna Gain Max 4.8 dBi
FEM or PA/LNA
  • 5 GHz: 3× External
  • 2.4 GHz: 2× External
Beamforming True
Range Performance Max: 200 m (656 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

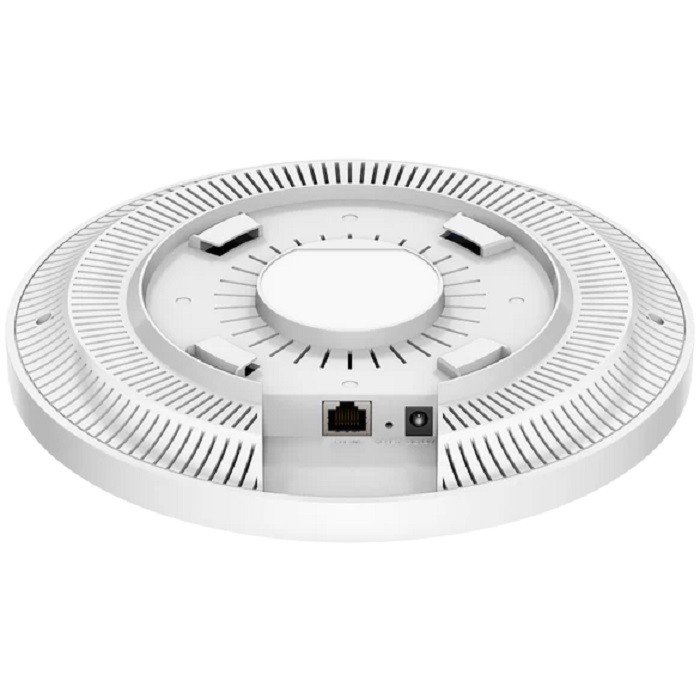

Interfaces
Interfaces 2.5G RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons Reset Button
Power Input
  • DC Jack
  • PoE via Ethernet Port
Power
Power Power Methods
  • DC
  • 802.3at/af PoE
  • Passive PoE
DC 12V 1.5A
Passive PoE 48 ~ 57V
Power Adapter AP3000 | DC Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC
AP3000_P | PoE Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W) 12 W (48 V PoE) 12 W (DC)
Idle Power Consumption (W) 6.1 W (48 V PoE) 6.1 W (DC)
Reliability
Reliability Advanced Hardware Watchdog
EMS ESD: Contact: 4kV; Air: 8kV
Environment Operating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications FCC, CE

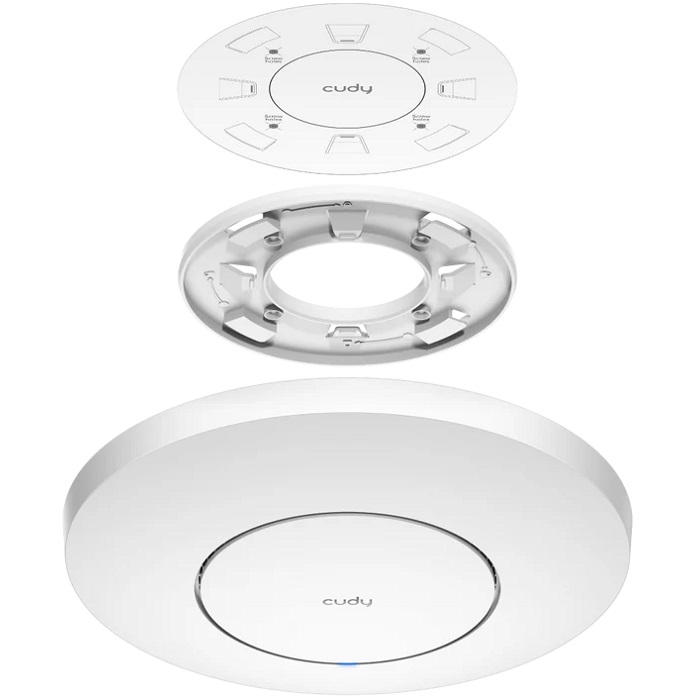

Mechanical
Mechanical Installation
  • Wall-mount
  • Ceiling-mount
Dimension Φ231.9×57.1 mm
Φ9.13×2.25 inches
Product Weight 494 g (17.43 oz.)

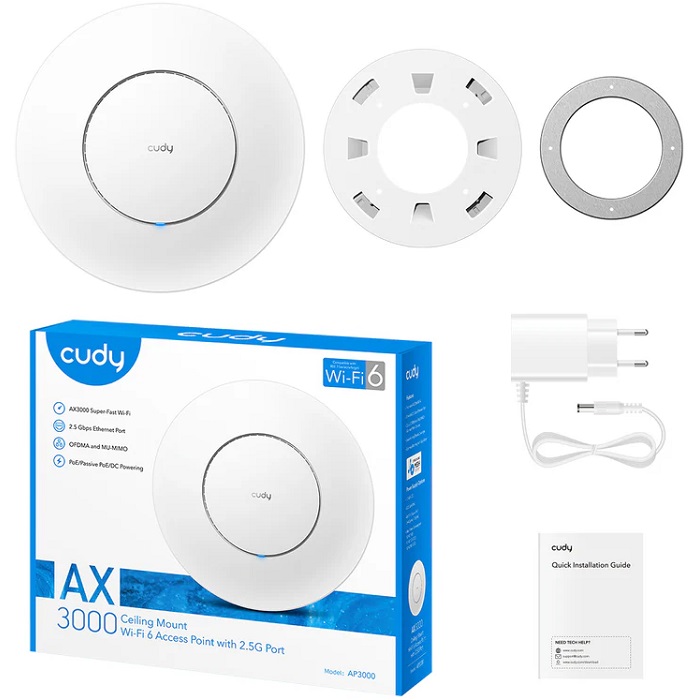

Package Content
Package Content
  • AP3000
  • Power Adapter
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
Ordering Information
Ordering Information Retail Package Weight
  • With PoE Adapter (_P) | EU: 1015 g (35.8 oz.)
  • With DC Adapter | EU: 941 g (33.19 oz.)
Retail Package Dimension 283×238×68 mm
11.14×9.37×2.68 inches
Units per Carton 20
Carton Net Weight
  • With PoE Adapter (_P) | EU: 20.3 kg (44.75 lbs)
  • With DC Adapter | EU: 18.8 kg (41.45 lbs)
  • With DC Adapter | UK: 19 kg (41.89 lbs)
Carton Gross Weight
  • With PoE Adapter (_P) | EU: 21.7 kg (47.84 lbs)
  • With DC Adapter | EU: 20.0 kg (44.09 lbs)
  • With DC Adapter | UK: 20.2 kg (44.53 lbs)
Carton Dimension 58×37.5×49.5 cm
22.83×14.76×19.49 inches
